Specifications |
|
|
| |
|
|
General |
| |
|
|
CPU Support: |
|
Intel Pentium M / Celeron M processor |
| |
|
|
CPU Frequency: |
|
1.3 - 2.0GHz |
| |
|
|
Chipset: |
|
Intel 855GME + ICH4 (FSB:400MHz) |
| |
|
|
DRAM: |
|
1 x DDR333 SO-DIMM SDRAM upto 1GB |
| |
|
|
Watchdog: |
|
1 - 255 secs watchdog timer selectable w/Reset/NMI |
| |
|
|
Serial Port: |
|
2 x COM ports, COM1 for RS-232, COM2 for RS-232/422/485 |
| |
|
|
LAN 1: |
|
Intel 82562EM (10/100Mbps) |
| |
|
|
LAN 2: |
|
Intel 82540EM (10/100/1000Mbps)
Support wake-on-LAN with ATX power |
| |
|
|
USB: |
|
2 x USB2.0 |
| |
|
|
Display: |
|
Built-in Intel 855GME, share system memory |
| |
|
|
HDD: |
|
1 x 2.5" HDD |
| |
|
|

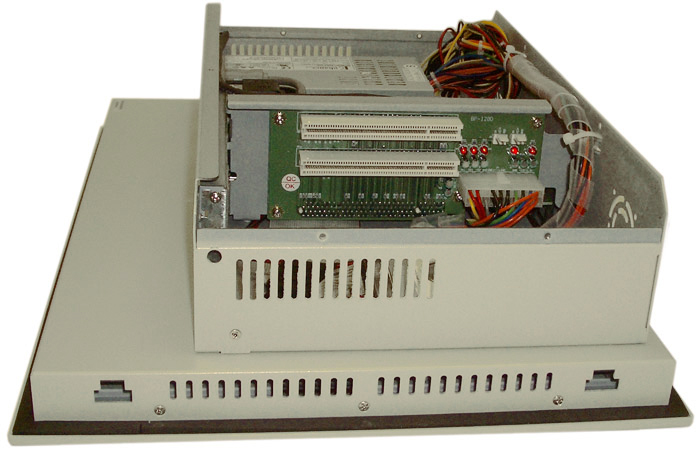

Expansion Slots: |
|
2 x PCI Slot |
| |
|
|
Touch Screen: |
|
Resistive (optional) |
| |
|
|
Chassis: |
|
Heavy-duty steel, NEMA4/IP-65 rating panel |
| |
|
|
Mounting: |
|
Panel Mount |
| |
|
|
Shock: |
|
10G acceleration peak to peak (11ms) |
| |
|
|
Vibration: |
|
5 - 17Hz, 0.1" double amplitude displacement
17 - 640Hz, 1.5G acceleration peak to peak |
| |
|
|
Power Supply: |
|
Universal AC input 220W ATX PSU |
| |
|
|

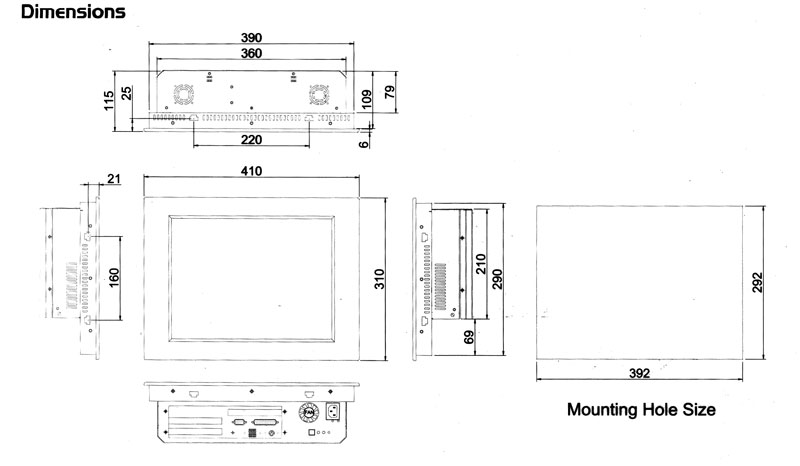

Dimensions: |
|
410(W) x 115(D) x 310mm(H) |
| |
|
|
Weight: |
|
7.2Kgs |
|
|
|
| |
|
|
