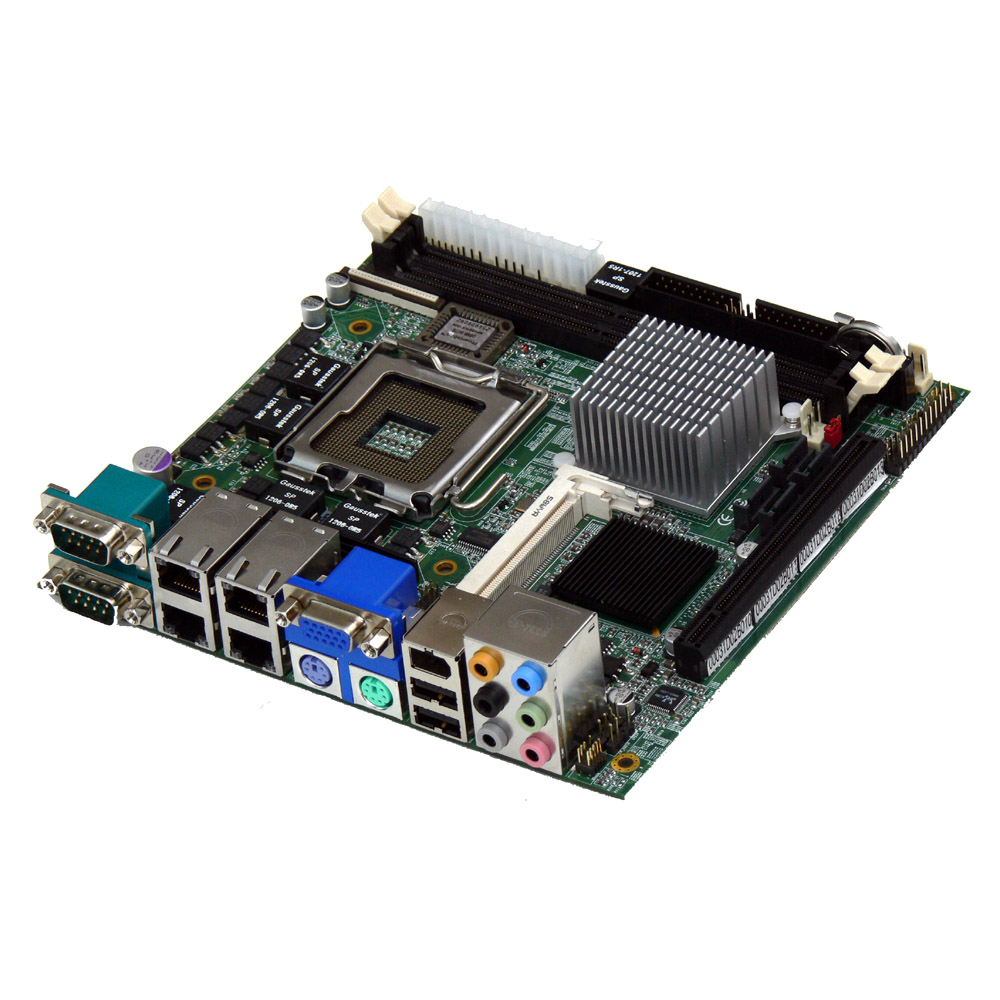

MX-7794 |
Intel LGA775 Pentium D, 945G with 4xGiga LAN, 1394, PCI Express slot & 7.1 Audio |
| |
 |
|
|
| |
|
Feature |
| |
 |
Intel LGA775 up to 800MHz FSB support EM64T & dual Core |
| |
|
Intel 945G & ICH7R |
| |
|
4 x Gigabit Ethernet |
| |
|
2 x IEEE1394, 4 x USB 2.0, 7.1 channel Audio, |
| |
|
4 x SATA, PCI Express slot, Mini-PCI socket |
| |
|
|
| |
|
|

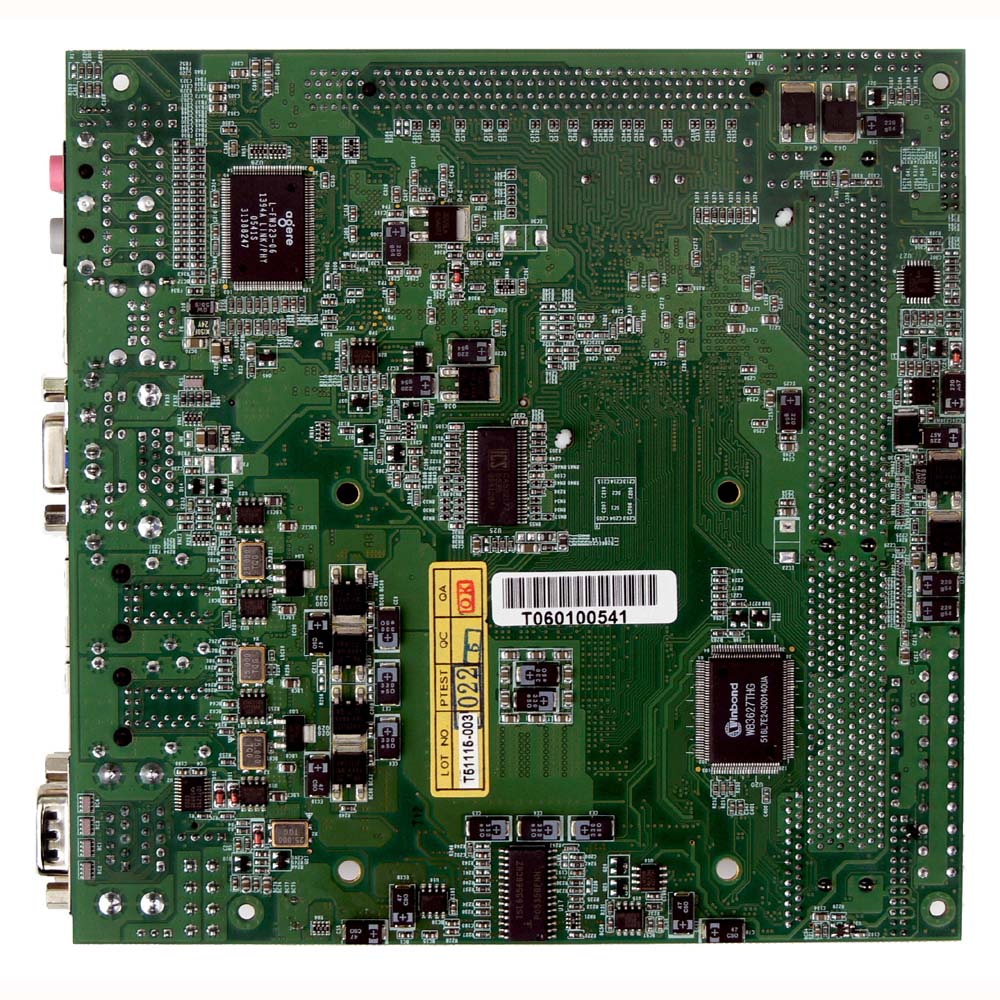

Additional Images: |
|
|
|
|
Specifications |
|
|
| |
|
|
General |
| |
|
|
CPU: |
|
Intel® LGA 775 Pentium D up to 1066FSB, support EM64T, Dual Core. |
| |
|
|
Chipset: |
|
Intel® 945G & ICH7R |
| |
|
|
Memory: |
|
Dual channel DDR2 533/667 MHz SDRAM socket up to 2GB |
| |
|
|
Display: |
|
Intel 945G integrated GMA(Graphic Media Accelerator) 950 Technology |
| |
|
|
IDE: |
|
1x UltraATA/100 IDE channel up to 2 IDE devices |
| |
|
|
Serial ATA: |
|
4x Serial ATA II interface with 300MB/s transfer rate |
| |
|
|
Ethernet: |
|
4 x Marvell E8053 Gigabit Ethernet |
| |
|
|
SSD:: |
|
IDE1 supports DiskOnModule +5V power supply |
| |
|
|
I/O: |
|

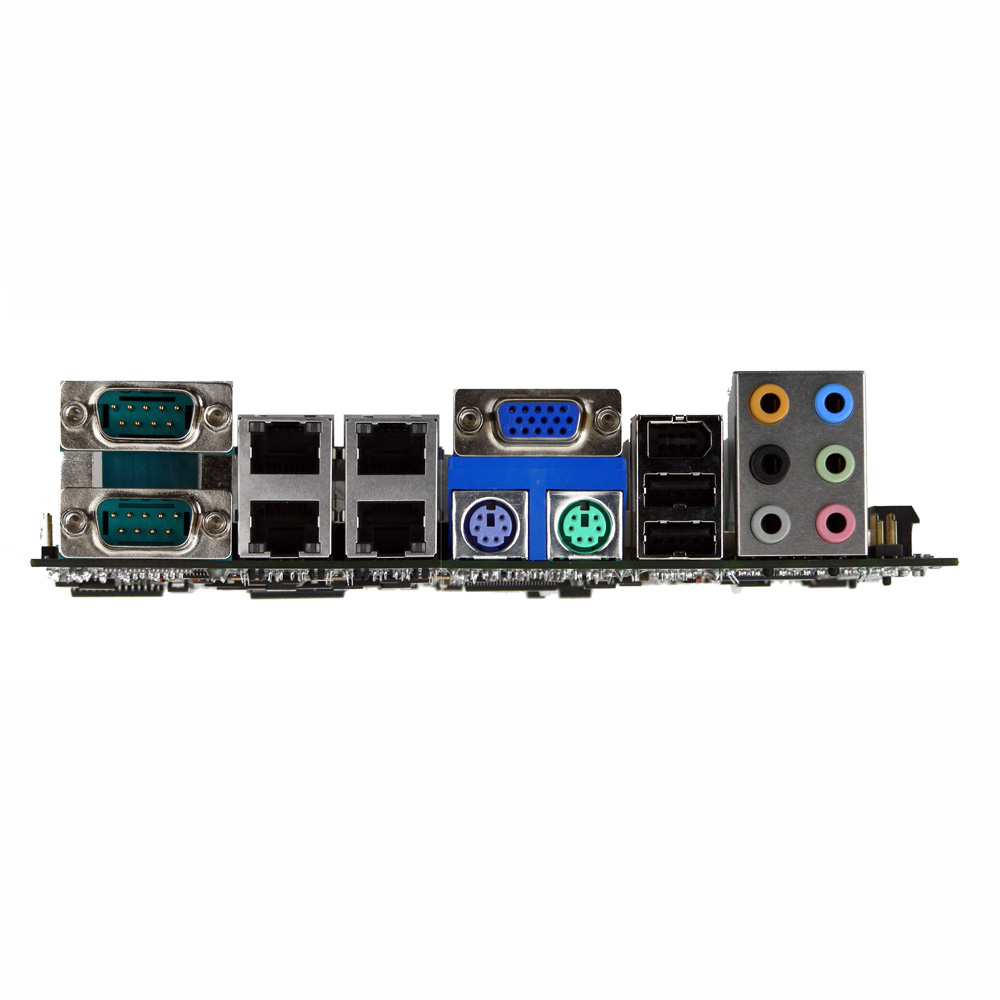

2 x RS232 port, 4 x USB 2.0 ports, 1x FDD, 2 x IEEE1394 ports. |
| |
|
|
Audio: |
|
Intel ICH7R integrated with Realtek ALC882 7.1 CH High Definition Audio |
| |
|
|
Expansion Slot: |
|
1 x Onboard 16x PCI-Express slot (x 1 mode compatible) & 1 x Min-PCI scoket |
| |
|
|
Power Requirement: |
|
Standard 24-pin ATX power supply. ( 20-pin is compatible) |
| |
|
|
| |
|
|
| |
|
|
