Ceres-100R 10" Mini Digital Sign with 5W Speaker
Shelf POP IR Activate Audio Marketing Display
Download the spec. sheet.
Ceres-100R 10" Mini Digital Sign
Features

- Space-saving lightweight shelf POP display
- Replacing static plastic display casino poker table
- Industrial grade LCD panel with stable and clear display
- Durable metal frame design, customized color available

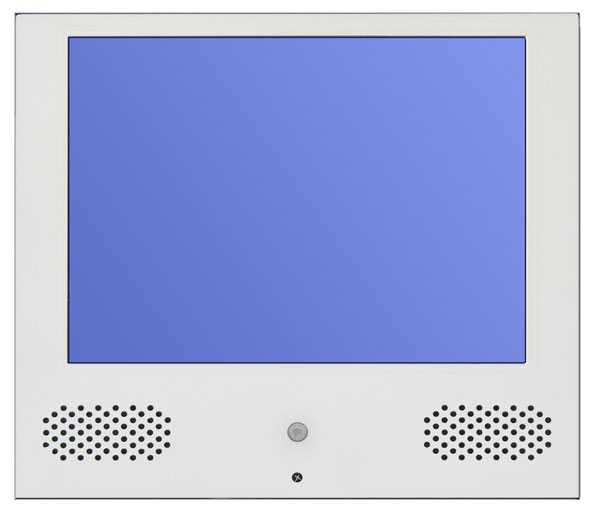

Ceres-100R 10" Mini Digital Sign White


Specification

Software




Support Media   VCD, DVD, JPEG
  Video Specification   - MPEG-1 [.mpg], MPEG-2 [.mpg, .vob]
- MPEG-4 ASP @ full screen D1 [.mp4, .avi]
- MPEG-2,4 playability is dependant on memory card bandwidth
  Photo Specification   - JPEG 5120x3840(max.) scaled to 640 x 480
Media Card   CF, SD
Playback Mode   Auto root file loop playing when power is turn on folder 1..9 interactive playback
Timer Schedule   Daily schedule on/off control (up to 4 shifts)
Hardware
CPU   Digital Media Process II
Display Resolution   VGA 640x480 (10.4” TFT LCD Panel resolution 800 x 600)
Brightness   400nit
Connector   Ext. Jack Audio R/L
CF, SD (Screwed cover)
Sensor   IR sensor Rang 10f – 20f, 3sec, 30sec, 3min, 5min trigger setting
Speakers   5W x 2<
Chassis Materials   Metal, Mounting VESA 75 x 75
Remote Control   Setup, Folder select, Volume control ..etc.
Power input   AC/DC Adapter ,Output +12VDC, 2A

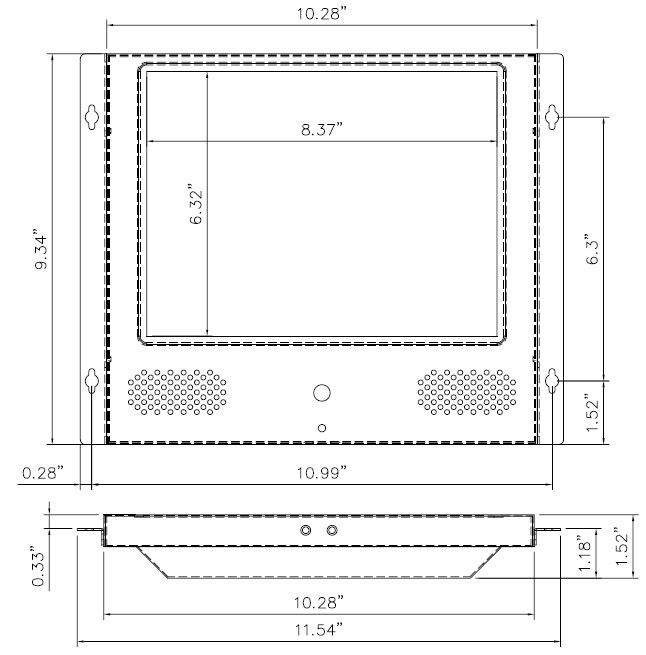

Dimension   10.28" x 9.34" x 1.52"

Ordering Information

Ceres-100R   10" Mini Digital Sign with 5W Speaker


Click on image to enlarge.
