Ceres-171R 17" Dynamic POP Signs with 5W Speaker
In-store POP IR Activate Audio Marketing Display
Download the spec. sheet.

- Auto On/OFF smart timer feature
- Ultimate weapon for in-store product promotion
- Attention grabber with IR trigger controlled audio





Support Media   VCD, DVD, JPEG
  Video Specification   - MPEG-1 [.mpg], MPEG-2 [.mpg, .vob]
- MPEG-4 ASP @ full screen D1 [.mp4, .avi]
- MPEG-2,4 playability is dependant on memory card bandwidth
  Photo Specification   - JPEG 5120x3840(max.) scaled to 640 x 480
Media Card   CF, SD
Playback Mode   Auto root file loop playing when power is turn on folder 1..9 interactive playback
Timer Schedule   Daily schedule on/off control (up to 4 shifts)
Digital Media Process II
Display Resolution
VGA 640x480 (17” TFT LCD Panel resolution 1280 x 1024)
Lamp Life Time
40000hr (Brightness of lamp becomes 50% of the initial brightness)
Ext. Jack Audio R/L
CF, SD (Key locked cover)
IR sensor Rang 10f – 20f, 3sec, 30sec, 3min, 5min trigger setting
5W x 2
Chassis Materials
Metal, Temp glass for screen protection , Mounting VESA 100 x 100
Remote Control
Setup, Folder select, Volume control ..etc.
Power input
AC/DC Adapter ,Output +12VDC, 4A
15" x 13.85" x 1.92"
Ordering Information
Ceres-171R   17" Dynamic POP Signs with 5W Speaker

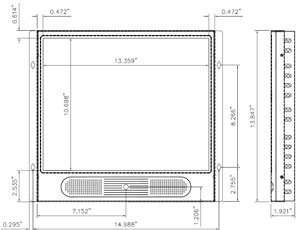

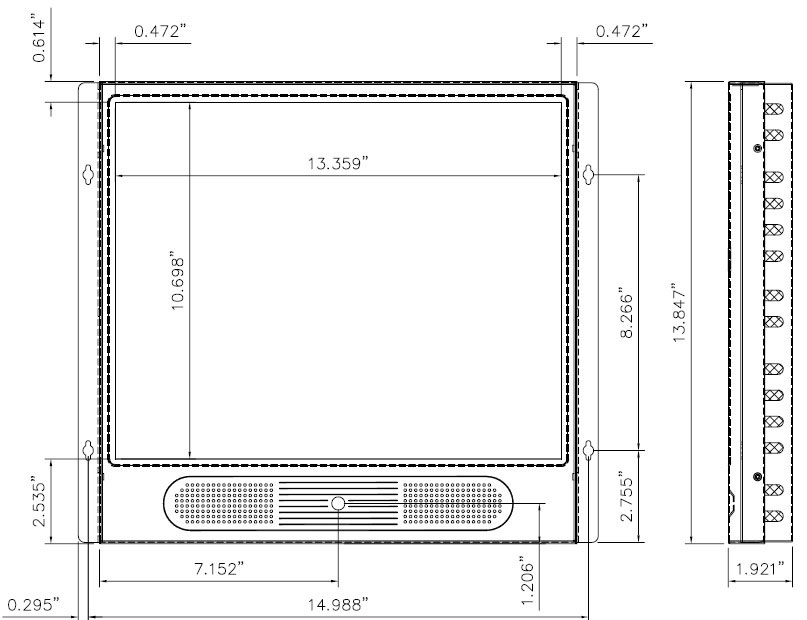

Click on image to enlarge.
