Ceres-171RI 17" Interactive POP Signs with 5W Speaker
In-store POP Keypad Interactive Marketing Display
Download the spec. sheet.
Ceres-171RI 17" Interactive POP Signs
Features

- Auto On/OFF smart timer feature
- Attention grabber with IR trigger controlled audio
- Customized Plexiglas design with click buttons (8 max)
- Interactive click buttons keep your customers informed and entertained

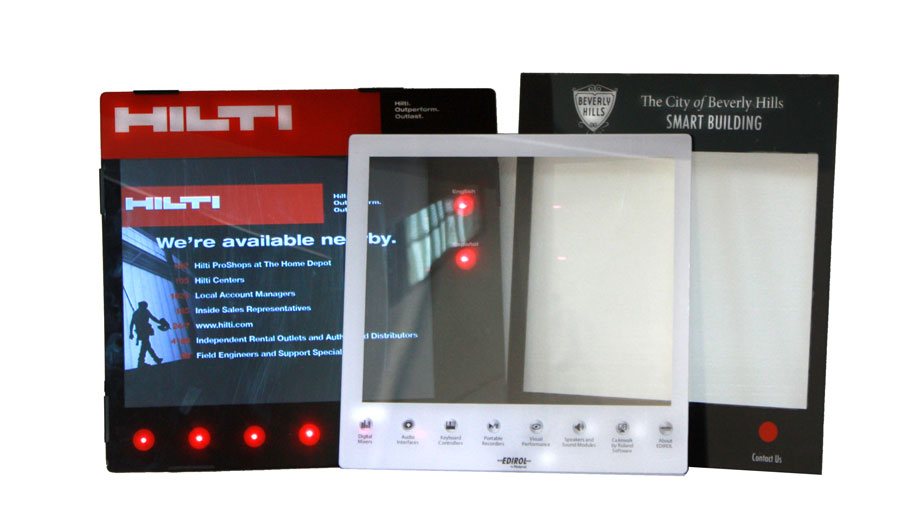

Ceres-171RI 17" Customized Interactive POP Signs


Specification

Software




Support Media   VCD, DVD, JPEG
  Video Specification   - MPEG-1 [.mpg], MPEG-2 [.mpg, .vob]
- MPEG-4 ASP @ full screen D1 [.mp4, .avi]
- MPEG-2,4 playability is dependant on memory card bandwidth
  Photo Specification   - JPEG 5120x3840(max.) scaled to 640 x 480
Media Card   CF, SD
Playback Mode   Auto root file loop playing when power is turn on folder 1..9 interactive playback
Timer Schedule   Daily schedule on/off control (up to 4 shifts)
Hardware
CPU
Digital Media Process II
Display Resolution
VGA 640x480 (17” TFT LCD Panel resolution 1280 x 1024)
Brightness
400nit
Lamp Life Time
40000hr (Brightness of lamp becomes 50% of the initial brightness)
Keypad
1 – 8 (max)keys, Capacitive type keypad with LED indicator
Front Bezel
3mm Plexiglas , 3 layout styles available, customized available
Connector
Ext. Jack Audio R/L CF, SD (Key locked cover)

Speakers
5W x 2
Chassis Material
Metal, Mounting VESA 100 x 100
Remote Control
Setup, Folder select, Volume control ..etc.
Power input
AC/DC Adapter ,Output +12VDC, 4A

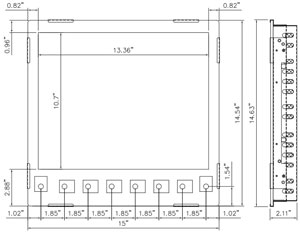

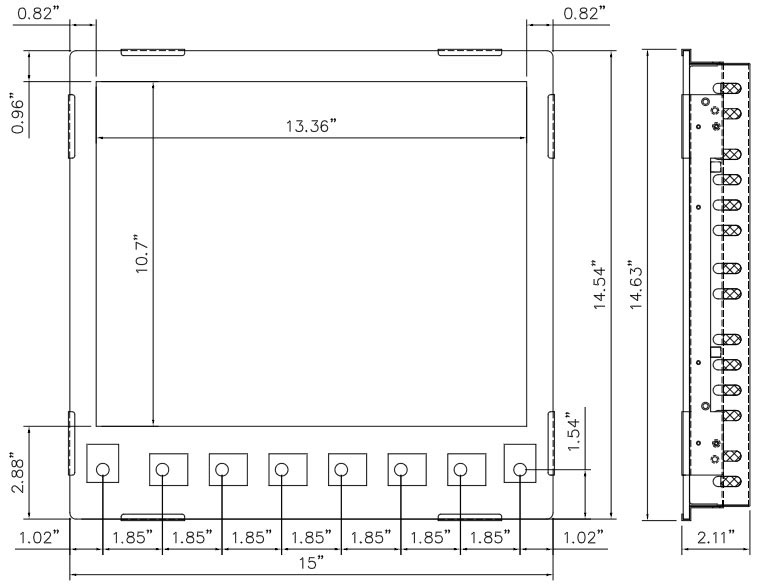

Dimension
15" x 14.63" x 2.11"
Ordering Information
Ceres-171RI   17" Interactive POP Signs with 5W Speaker


Click on image to enlarge.
