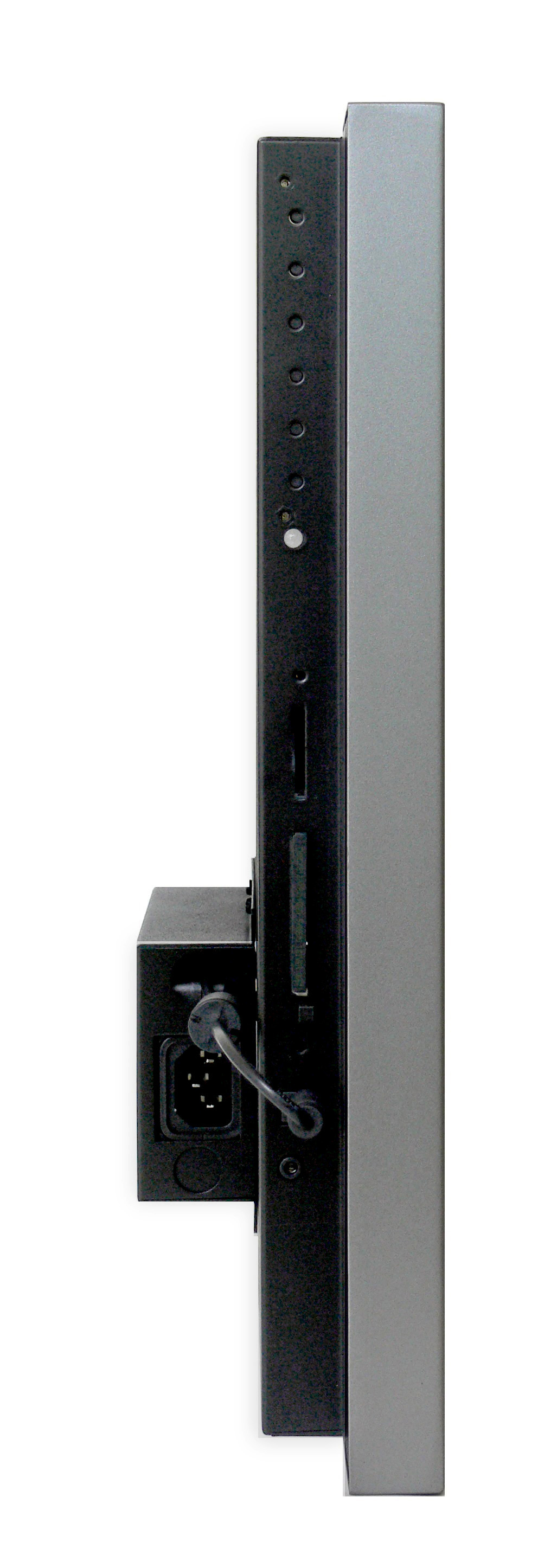

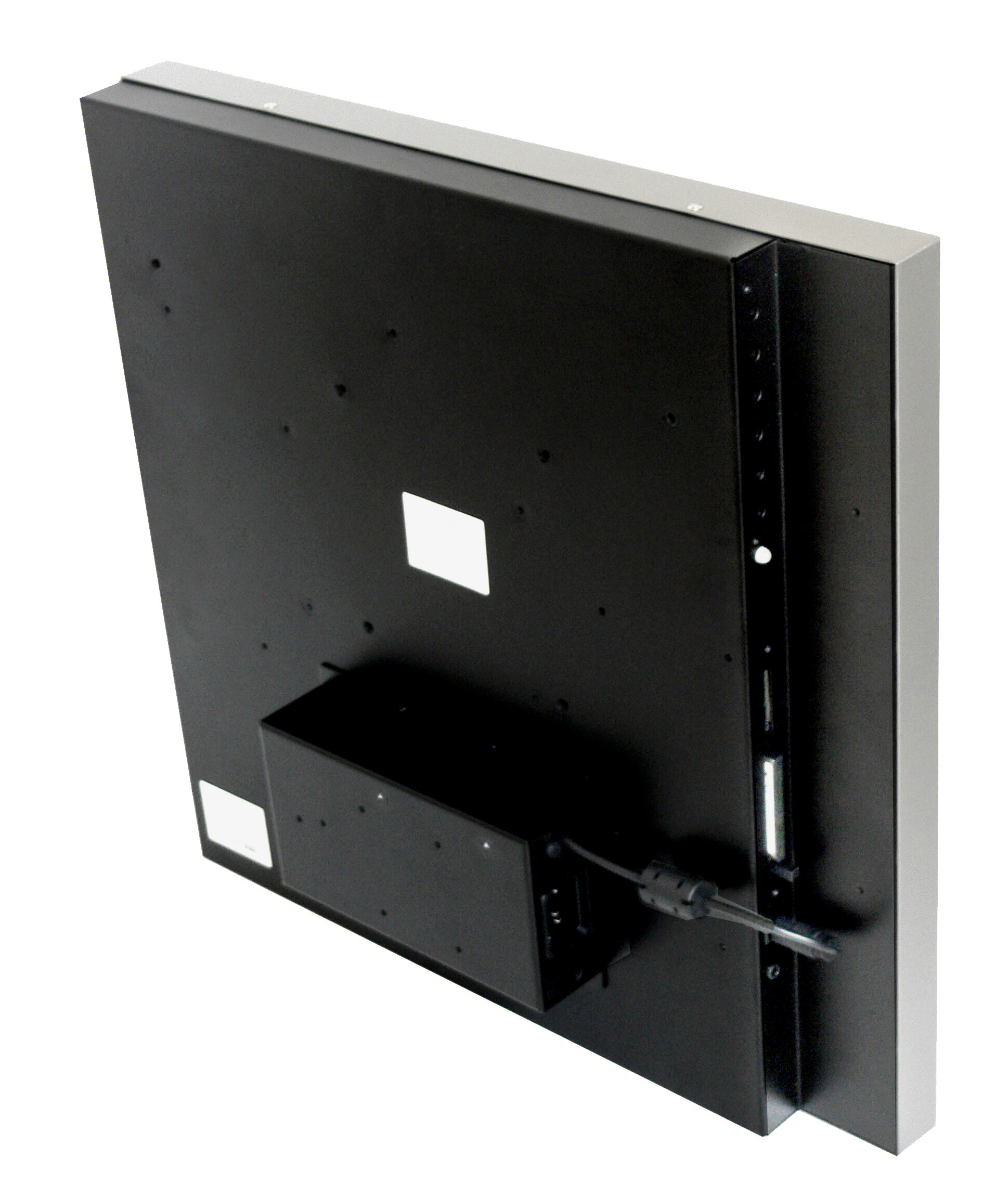

Ceres-171R |
17" Interactive Digital Signage Station |
|
|
Specifications |
|
|
| |
|
|
General |
| |
|
|
Screen Type: |
|
17” TFT LCD |
|
|
|
Screen Resolution: |
|
1280 x 1024 |
|
|
|
Brightness: |
|
400nits
|
| |
|
|
Contrast Ratio: |
|
1:500 |
| |
|
|
Viewing Angle: |
|
(H) 120 degrees, (V) 120 degrees |
| |
|
|
Lamp Lifetime: |
|
40000hr (Brightness of lamp becomes 50% of the initial brightness) |
| |
|
|
Support media: |
|
CF, SD |
| |
|
|
Video Resolution: |
|
Native decoding - 720x480
Output - 640x480 |
| |
|
|
JPEG resolution: |
|
Native decoding - 5120x3840(max.)
Output - 640x480 |
| |
|
|
Support Playback: |
|
JPEG, Motion JPEG, MP3, WMA,
MPEG1/2/4 |
| |
|
|
Auto Start mode: |
|
Auto start when power is turn on
Auto Slide show JPEG with Background MP3 music |
| |
|
|
Playback mode: |
|
Continuous Loop mode
IMD mode |
| |
|
|
Timer schedule: |
|
Daily schedule on/off control, 4 time zones |
| |
|
|
Power input: |
|
100~240VAC |
| |
|
|
Speakers: |
|
2 Watts x 2Ch, Ext. Jack |
| |
|
|
Motion sensor : |
Active distance 15 feet, Control speaker and content on/off, Time can be preset to 15 sec, 30 sec, 3 min, 5 min |
| |
|
Interactive keys: |
Up to 8 Keys |
| |
|
Frame: |
Metal |
| |
|
Mount: |
Available in wall mount and panel mount |
| |
|
|
|
|
